Luminesense 1x150cm led tube in luminaire

Posted by Marcel van der Steen in Led lights, Light measurements Add comments

luminesense_1x150_lum presents 1x150cm led tube light in a luminaire.

This article shows the measurement results. Many parameters are also found in the Eulumdat file.

See this overview for a comparison with other light bulbs.

Summary measurement data

parameter meas. result remark
Color temperature 5373 K Cold white
Luminous intensity Iv 686 Cd Measured straight underneath the lamp
Illuminance modulation index 17 % Measured straight underneath the lamp. Is a measure for the amount of flickering.
Beam angle 129 deg 129º for the C0-C180 plane (crossing length direction of the tube) and 105º for the C90-C270 plane (length direction). This is virtually the same value.
Power P 32.1 W
Power Factor 0.93 For every 1 kWh net power consumed, there has been 0.4 kVAhr for reactive power.
THD 15 % Total Harmonic Distortion
Luminous flux 2339 Lm
Luminous efficacy 73 Lm/W
CRI_Ra 60 Color Rendering Index.
Coordinates chromaticity diagram x=0.3371 and y=0.3747
Fitting FL-tube This Tube Light is connected directly to the grid voltage of 230 V AC.
PAR-value 5.2 μMol/s/m2 The number of photons seen by an average plant when it is lit by the light of this light bulb. Value valid at 1 m distance from light bulb.
PAR-photon efficacy 0.6 μMol/s/We The toal emitted number of photons by this light, divided by its consumption in W. It indicates a kind of efficacy in generating photons.
S/P ratio 1.7 This factor indicates the amount of times more efficient the light of this light bulb is perceived under scotopic circumstances (ow environmental light level).
L x W x H external dimensions 1560 x 95 x 95 mm External dimensions of the lamp.
L x W x H luminous area 1550 x 85 x 45 mm Dimensions of the luminous area (used in Eulumdat file). This is equal to the dimensions of the transparent cover around the led tube.
General remarks The ambient temperature during the whole set of measurements was 23.5-25.5 deg C. The temperature of the lamp gets about 15 degrees hotter than ambient, at the spot where the power supply most likely is situated. The cover itself around the tube gets 10 degrees hotter than ambient.

Warm up effect: during the warm up time the illuminance decreased with 9 % and the consumed power with 4 %.

Voltage dependency: the power consumption and illuminance do not vary significantly when the voltage is varied from 200 – 250 V.

Measurement report (PDF) olino-pdf
Eulumdat file olino_eulumdat Right click on icon and save the file.
IES file olino_eulumdat Right click on icon and save the file.

Overview table

luminesense_1x150_lum_summary2

The overview table is explained on the OliNo website.

Please note that this overview table makes use of calculations, use this data with care as explained on the OliNo site. E (lux) values are not accurate, when within 5 x 1550 mm ≈ 7800 mm. Within this distance from the lamp, the measured lux values willl be less than the computed values in this overview as the measurements are then within the near field of the lamp.

Eulumdat light diagram

This light diagram below comes from the program Qlumedit, that extracts these diagrams from an Eulumdat file. It is explained on the OliNo site.

luminesense_1x150_lum_light_diagram

The light diagram giving the radiation pattern.

It indicates the luminous intensity around the light bulb. The direction or plane C0-C180 (crossing the length direction of the tube) emits light in a wider beam than the C90-C270 (along the length direction of the tube).

Illuminance Ev at 1 m distance, or luminous intensity Iv

Herewith the plot of the averaged luminous intensity Iv as a function of the inclination angle with the light bulb.

luminesense_1x150_lum_pp_avg

The radiation pattern of the light bulb.

This radiation pattern is the average of the light output of the light diagram given earlier. Also, in this graph the luminous intensity is given in Cd. These averaged values are used (later) to compute the lumen output.

luminesense_1x150_lum_ev_dep_kantelhoek

Intensity data of every measured turn angle at each inclination angle.

This plot shows per inclination angle the intensity measurement results for each turn angle at that inclination angle. There normally are differences in illuminance values for different turn angles. However for further calculations the averaged values will be used. When using the average values per inclination angle, the beam angle can be computed, being 129º in the C0-C180 plane and 105º in the C90-C270 plane.

Luminous flux

With the averaged illuminance data at 1 m distance, taken from the graph showing the averaged radiation pattern, it is possible to compute the luminous flux. The result of this computation for this light spot is a luminous flux of 2339 Lm.

Luminous efficacy

The luminous flux being 2339 Lm, and the power of the light bulb being 32.1 W, yields a luminous efficacy of 73 Lm/W.

Electrical properties

A power factor of 0.93 means that for every 1 kWh net power consumed, a reactive component of 0.4 kVAr was needed.

Lamp voltage 230 VAC
Lamp current 150 mA
Power P 32.1 W
Apparent power S 34.4 VA
Power factor 0.93

Of this light bulb the voltage across ad the resulting current through it are measured and graphed. See the OliNo site how this is obtained.

luminesense_1x150_lum_u_i_waveforms

Voltage across and current through the lightbulb

This waveforms have been checked on requirements posed by the norm IEC 61000-3-2:2006 (including up to A2:2009). See also the explanation on the OliNo website.

luminesense_1x150_lum_harmonics

Harmonics in in the current waveform and checked against IEC61000-3-2:2006

There are limits for the harmonics for lighting equipment > 25 W. This lamp has less harmonics than the limits posed in this norm. Even when considering that the used lampvoltage does not fulfill the required maximum limits for its harmonics.

luminesense_1x150_lum_harmonics_voltage

Harmonics in the used lamp voltage

As stated before, even with the used lamp voltage with more harmonics than specified in the norm, this lamp’s current fulfills the norm’s requirement on harmonic content.

The Total Harmonic Distortion of the current is computed as 15 %.

Temperature measurements lamp

ir_0525

Temperature image of the position of the lumnaire where most likely the power supply is positioned.

ir_0526

Measurement of the temperature on the lamp cover

status lamp > 2 hours on
ambient temperature 24 deg C
reflected background temperature 24 deg C
camera Flir BCAM
emissivity 0.95(1)
measurement distance 0.20 m (on photo of power supply)
IFOVgeometric 0.7 mm
NETD (thermal sensitivity) 100 mK

(1) The emissivity is set at 0.95 which is close to the value of both the transparent cover (tape was used and was not visible) and the luminaire material.

The position of the power supply is the hottest with 15 degrees higher than ambient temperature. The cover gets 10 degrees hotter than ambient.

Color temperature and Spectral power distribution

luminesense_1x150_lum_powerspectrum_at_1m_distance

The spectral power distribution of this light bulb, energies on y-axis valid at 1 m distance.

The measured color temperature is about 5375 K which is cold white.

This color temperature is measured straight underneath the light bulb. Below a graph showing the color temperature for different inclination angles.

luminesense_1x150_lum_cct_function_of_incl

Color temperature as a function of inclination angle.

The measurement of CCT is measured for inclination angles up to 65º as beyond that angle the illuminance values are very low (< 5 lux).

The beam angle is maximally 129º, meaning a 64.5º inclination angle. In this area most of the light is present. The variation in correlated color temperature in this area is < 1 %.

PAR value and PAR spectrum

To make a statement how well the light of this light bulb is for growing plants, the PAR-area needs to be determined. See the OliNo website how this all is determined and the explanation of the graph.

luminesense_1x150_lum_par_spectra_at_1m_distance

The photon spectrum, then the sensitivity curve and as result the final PAR spectrum of the light of this light bulb

parameter value unit
PAR-number 5.2 μMol/s/m²
PAR-photon current 17.8 μMol/s
PAR-photon efficacy 0.6 μMol/s/W

The PAR efficiency is 62 % (valid for the PAR wave length range of 400 – 700 nm). So maximally 62 % of the total of photons in the light is effectively used by the average plant (since the plant might not take 100 % of the photons at the frequency where its relative sensitivity is 100 %).

S/P ratio

The S/P ratio and measurement is explained on the OliNo website. Here the results are given.

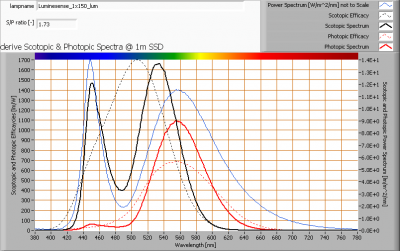

luminesense_1x150_lum_s_and_p_spectra_at_1m_distance

The power spectrum, sensitivity curves and resulting scotopic and photopic spectra (spectra energy content defined at 1 m distance).

The S/P ratio is 1.7.

More info on S/P ratio can be found on the OliNo website.

Chromaticity diagram

luminesense_1x150_lum_chromaticity

The chromaticity space and the position of the lamp’s color coordinates in it.

The light coming from this lamp is just outside the area designated with class A. This Class A is an area that is defined for signal lamps, see also the OliNo website.

Its coordinates are x=0.3371 and y=0.3747.

Color Rendering Index (CRI) or also Ra

Herewith the image showing the CRI as well as how well different colors are represented (rendered). The higher the number, the better the resemblance with the color when a black body radiator would have been used (the sun, or an incandescent lamp). Practical information and also some critics about the CRI can be found on the OliNo website. Each color has an index Rx, and the first 8 indexes (R1 .. R8) are averaged to compute the Ra which is equivalent to the CRI.

luminesense_1x150_lum_cri

CRI of the light of this lightbulb.

The value of 60 is lower than 80 which is considered a minimum value for indoor usage.

Note: the chromaticity difference is 0.011 indicates the distance to the Planckian Locus. There is no norm yet that states what the max deviation from white light is allowed to be. A reference with signal lights as a reference is given in the chromaticity diagram.

Voltage dependency

The dependency of a number of lamp parameters on the lamp voltage is determined. For this, the lamp voltage has been varied and its effect on the following light bulb parameters measured: illuminance E_v [lx], the lamppower P [W] and the luminous efficacy [Lm/W].

luminesense_1x150_lum_voltagedependency

Lamp voltage dependencies of certain light bulb parameters, where the value at 230 V is taken as 100 %.

The illuminance and consumed power do not vary significantly when the voltage is varied.

When the voltage at 230 V varies with + and – 5 V, then the illuminance varies < 0.1 %, so when abrupt voltage changes occur this effect is not visible in the illuminance output.

Warm up effects

After switch on of a cold lamp, the effect of heating up of the lamp is measured on illuminance E_v [lx], the lamppower P [W] and the luminous efficacy [lm/W].

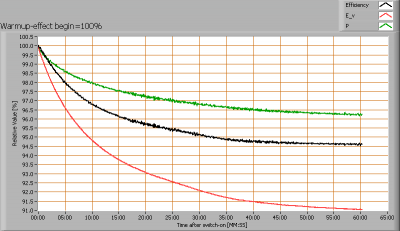

luminesense_1x150_lum_startupeffect

luminesense_1x150_lum_startupeffect_end

Effect of warming up on different light bulb parameters. At top the 100 % level is put at begin, and at bottom at the end.

The warm up time is about 1 hour. During that time the the illuminance decreases with 9 % and the consumed power with 4 %.

Measure of flickering

An analysis is done on the measure of flickering of the light output by this light bulb.

luminesense_1x150_lum_flicker_waveforms

The measure of fast illuminance variartion of the light of the light bulb

parameter waarde eenheid
Flicker frequency 100.0 Hz
Illuminance modulation index 17 %

The illuminance modulation index is computed as: (max_Ev – min_Ev) / (max_Ev + min_Ev).
